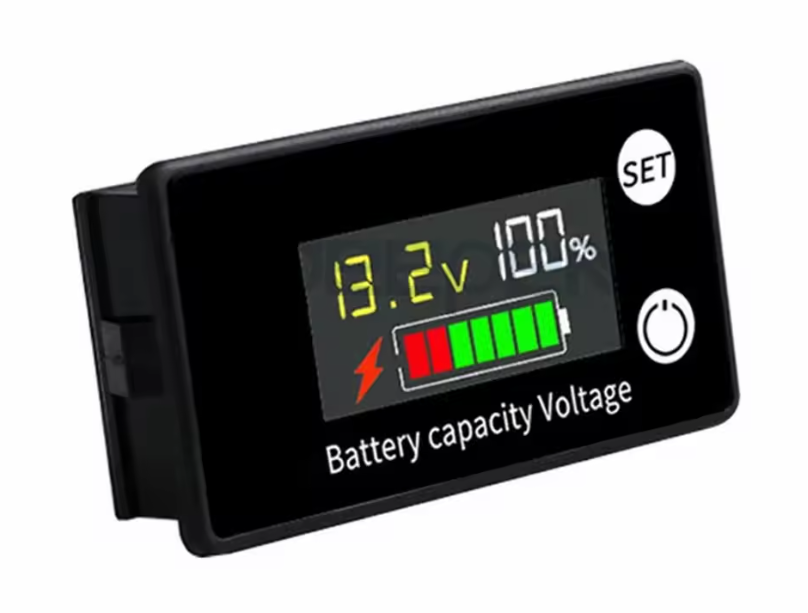

Panel Mount Voltmeter and Battery Indicator

Panel Mount Voltmeter and Battery Indicator

$12.99 USD
$12.99 USD
Sale Sold out
Description:

1. High stability
2. Strong reliability
3. Long service life
4. Accuracy error calibration with adjustable potentiometer
5. User defined high and low voltage range: DC8-100V
6. Measurement of ternary lithium battery L from L03 series to L20 series (power off memory)
7. Lead acid battery P measurement: DC12V, 36V, 48V, 60V72V, 84V (power off memory)
8. Measurement of lithium iron battery F from F03 to F23 (power off memory)


Parameters:


Voltage detection range: DC8-80V
Working current: ≤ 15MA
Display mode: LCD screen
Detection accuracy: ± 1%
Opening size: 58.5 * 28.5MM
Refresh speed: 500ms/time

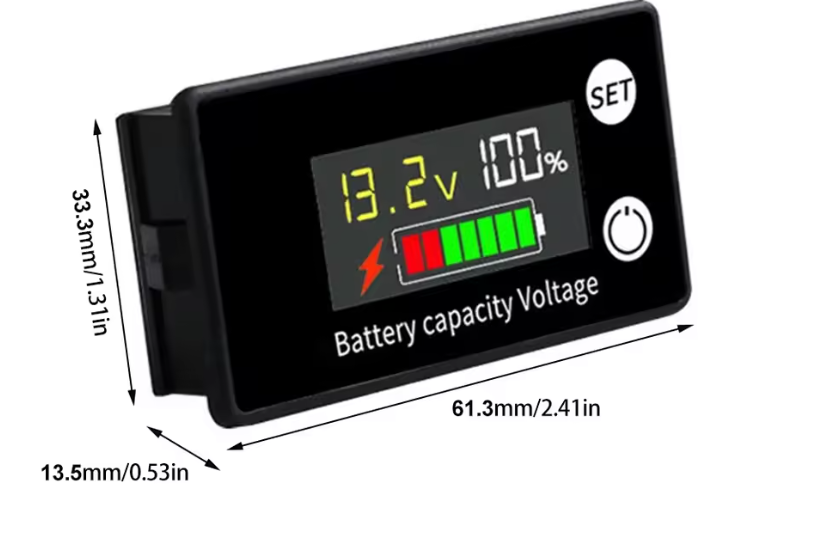

Boundary dimension: 61.3 * 33.3 * 13.5MM
